​Pop-Link Mounting Systems

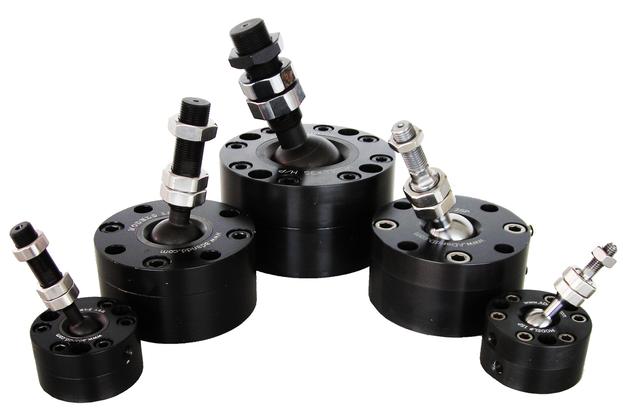

The Serosphere SERIES

A Serosphere is a positioning device which supports an object while work is being performed on that object.  A locking feature may be achieved either hydraulically or pneumatically.  Serospheres, like most cylinders, are double acting.  Air or oil applied behind the internal piston will clamp the ball; air or oil applied to the opposite side will release the ball.


Load Compensation (Load Comp) is a standard feature. Load Comp will aid in supporting a load in the event of the loss of air or hydraulic pressure. This feature may be adjusted while the load is mounted to the Serosphere.


                                                                               CAD files and dimensional data available by contacting sales@ADandD.com .
